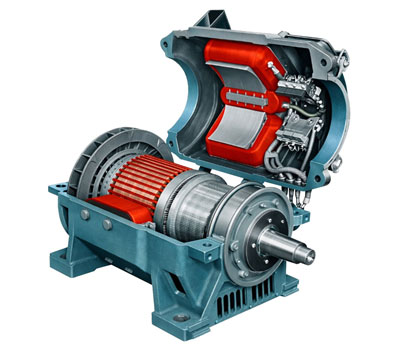

Wolong Electric America has introduced the MD600Z family of armored DC motors, designed as drop-in replacements for legacy MD600 machines. The MD600Z blends the original MD600’s proven electrical design with modern MD800 mechanical and thermal upgrades, enhancing reliability and maintainability while maintaining speed, torque and inertia in multi-motor systems.
According to Wolong, plants operating large fleets of MD600 motors from the 1940s through the late 1970s often hesitate to upgrade to MD800 designs because the different speed and inertia profiles can disrupt systems with many mechanically coupled motors powered from the same circuit. The MD600Z solves this issue by retaining the original MD600 armature and field coil designs, making it electrically interchangeable with legacy MD600 units while providing a reinforced, modernized platform for mill-duty service.
At the core of the MD600Z is a fabricated steel-reinforced “Z” vintage frame, building on MD mill-duty experience in heavy mining and steel applications. The split-frame construction, increased clamping, welded lifting lugs, and robust bearing support handle high shock, vibration and intermittent loading typical of roll tables, metal forming equipment, and overhead cranes.
Standard features include TREC coils in both main and commutating fields, a Class H insulation system with 75°C temperature rise, and interlocking, glass-banded commutator construction with Viton sealing for durability and contamination resistance. TIG-welded riser connections and the split frame design further strengthen the motor mechanically and ease access for inspection and maintenance.
Mechanical enhancements support continuous severe-duty operation in steel and crane environments. Single-width cylindrical roller bearings provide high intermittent and impact thrust capacity, while cartridge-type bearing assemblies replace older complex frame head castings to simplify bearing replacement and improve alignment. Labyrinth seals, welded lifting lugs, and an XSD extra severe-duty motor blower improve protection against contaminants, support higher thermal loading, and help extend service intervals.
Source: Wolong Electric America
